Beschreibung
Produktbeschreibung

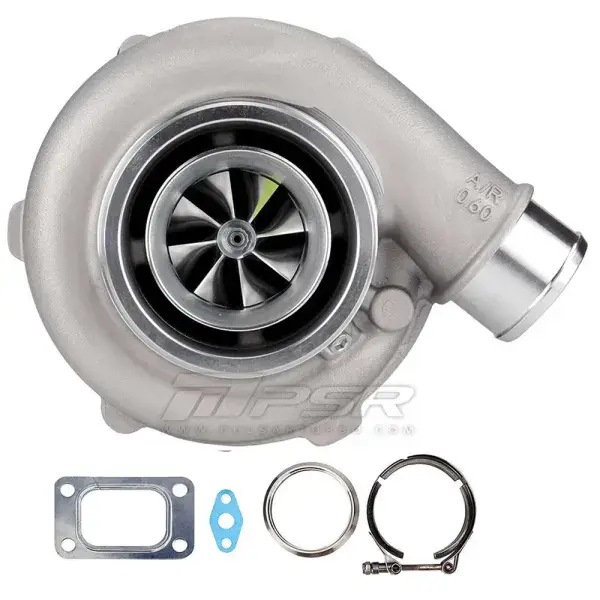

- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- Billet Compressor Wheels with Extended Tip Technology
- Inconel 713c 10 blade turbine wheel
- V-Band Flange kit for the exhaust housing included
- Stainless Steel
- HP-rating 900HP
Additional information
- Compressor Wheel: 64.4mm, 82.2mm, 87.1mm, 7+7 Blade
- Compressor Housing: Standard
- Compressor Inlet: 4.0 inch
- Conpressor Outlet: 2.5 inch
- Turbine Wheel: 66.1 x 74.17mm, 10 Blade
- Turbine Housing Inlet: T4
- Turbine Housing Outlet: V-Band
- A/R: 0.63
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil drain: T4 flange(Drawing)
