Beschreibung
Produktbeschreibung

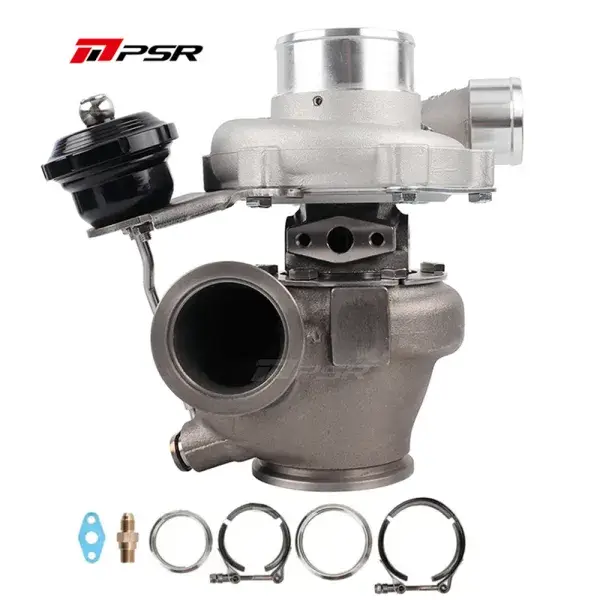

- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~45 lb/min, rated @ 550 FWHP
Additional Information
- Compressor Wheel: 50x67mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3inch Hose
- Compressor Outlet: 2inch Hose
- Compressor Housing: Standard
- Turbine Inlet: .72 Dual V-Band IWG
- Actuator: Billet 11.6psi
- Turbine Outlet: 5 Bolt or 3inch V-Band (3.55 OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14x1.5
We highly recommended running water cooling for better durability.
