Beschreibung
Produktbeschreibung

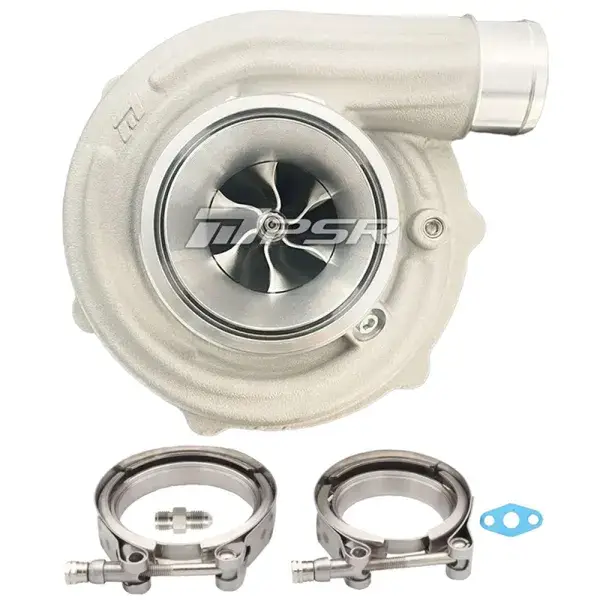

- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator(12-14 psi)
- HP rated at 770HP
- Curved Point Milled A Series Compressor Wheel: 58x71mm
- A Series Turbine Wheel: 60x55mm
- Rotation: Forward
- Compressor Housing: T51R Mod
- Compressor Inlet: 4inch Hose
- Compressor Outlet: 2inch Hose
- Turbine Inlet: Dual V-Band
- Turbine Outlet: V-Band
- A/R: .72
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
